You set your Gold Coast air conditioning to 21°C, but the room never feels right. Meanwhile, the display insists everything is fine. An air conditioner wrong temperature reading is one of the most common faults we see across the Gold Coast. Fortunately, it is almost always a sensor or controller issue – not a dead unit. In this guide, we explain how a sensor can read 28°C in a 21°C room, what that does to your comfort and your power bill, why a DIY controller swap usually backfires, and how we diagnose and fix it properly.
Table of contents
- What causes an air conditioner wrong temperature reading?
- How can a sensor read 28°C when the room is really 21°C?
- Why won’t my air conditioner reach the set temperature?
- What does a wrong temperature reading do to my comfort and power bills?
- Should I replace the aircon controller myself?
- How do you diagnose and fix sensor and controller faults?
- When should you call a Gold Coast technician?
What causes an air conditioner wrong temperature reading?
Your split system does not “feel” the room the way you do. Instead, it relies on a small sensor called a thermistor. This thermistor sits in the return-air path of the indoor head, and it constantly measures the air being drawn in. The controller then compares that reading to your set temperature and decides when to cool.
So the chain is simple. You set a target on the remote. The thermistor reports the “actual” room temperature. The unit cools until the two numbers match.
However, if the thermistor drifts or fails, the whole chain breaks. The unit still trusts the sensor, even when the sensor is wrong. As a result, your aircon chases a number that does not reflect reality.
How can a sensor read 28°C when the room is really 21°C?
A thermistor is basically a resistor that changes with heat. Because of that design, even small physical damage shifts the reading.
On the Gold Coast, humidity and coastal salt air are the usual culprits. Over time, moisture corrodes the sensor legs or the connector on the circuit board. Consequently, the resistance changes, and the unit misreads the temperature by several degrees.
A few other things cause the same result:
- A cracked solder joint or loose plug on the control board.
- A sensor knocked out of position during a previous service.

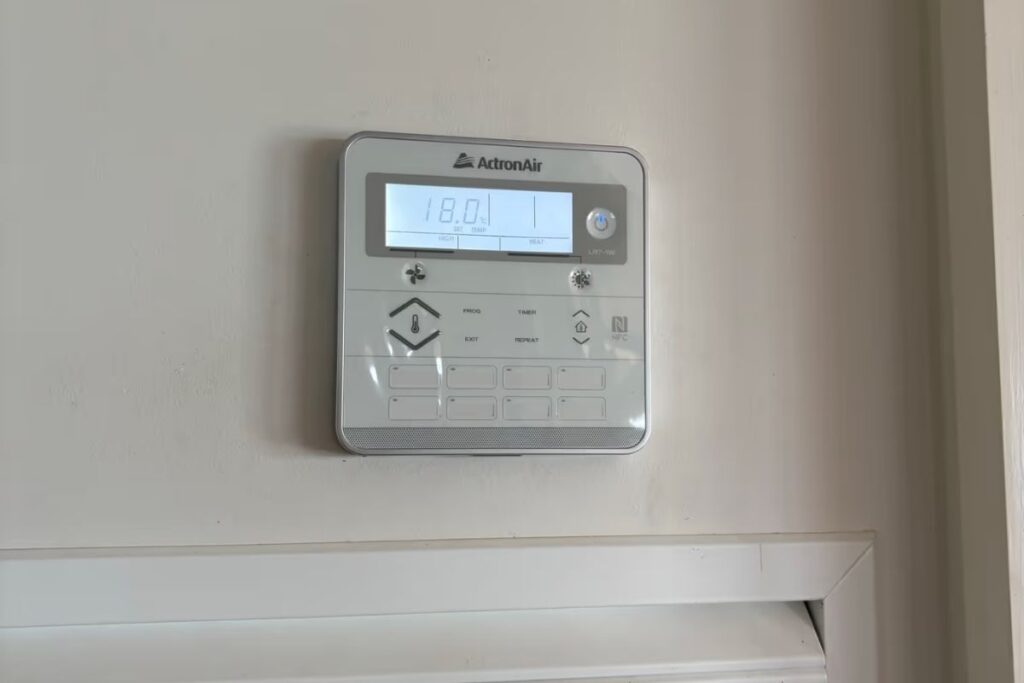

- A wall controller mounted in direct sun, near a lamp, or beside a draughty doorway.
For example, if the controller sits in afternoon sun through a west-facing window, it reads its own hot little pocket of air — not the room. Therefore, it may show 28°C while the rest of the house sits at a comfortable 21°C.
Why won’t my air conditioner reach the set temperature?

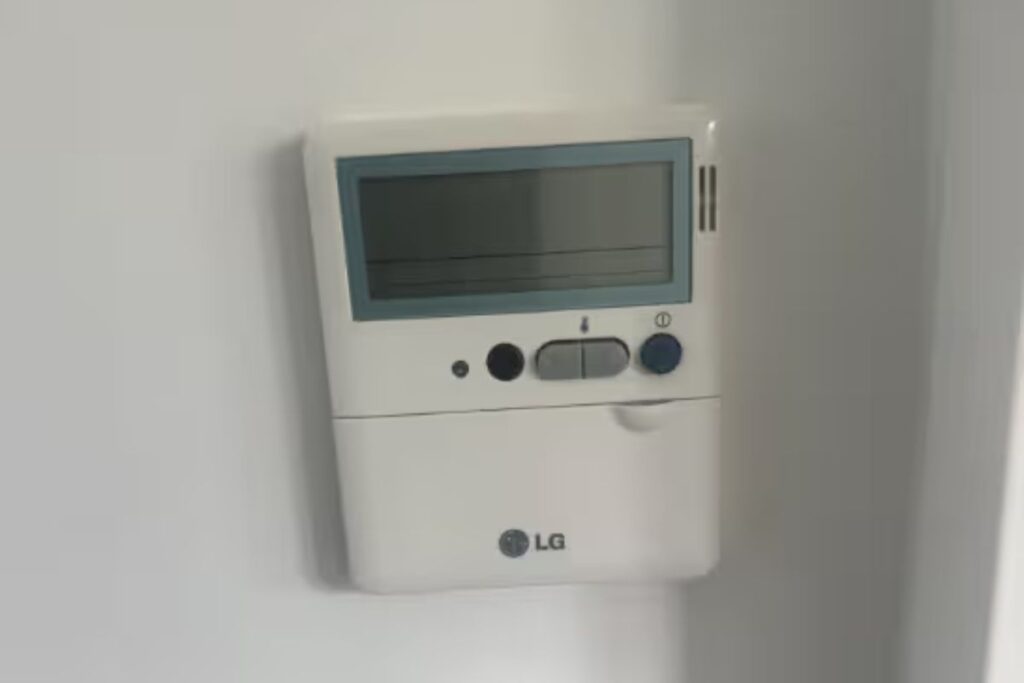

This is the flip side of the same fault, and it is why people search for aircon thermostat not accurate or air conditioner not reaching set temperature.
When the sensor reads too high, the unit thinks the room is hot. So it keeps cooling long after the space is already cold. You end up shivering while the bill climbs.
When the sensor reads too low, the opposite happens. The unit believes the target is met, so it switches off early. The room stays warm and sticky, even though the display says 21°C.
Sometimes the unit also short-cycles — it turns on and off in quick bursts. Meanwhile, a blocked filter or dirty coil can make all of this worse, because poor airflow starves the sensor of a true reading.
What does a wrong temperature reading do to my comfort and power bills?
The comfort side is obvious. One room feels like a fridge, another feels like a sauna, and nobody can agree on the remote.
The cost side is quieter but more painful. A misreading sensor makes the compressor run longer than it should, all day. On a humid Gold Coast summer, that extra runtime adds up fast. In short, you pay to cool a room that is already cool.
There is a mechanical cost too. Constant overrunning and short-cycling wear out the compressor early. So a cheap sensor fault, left alone, can turn into an expensive repair.

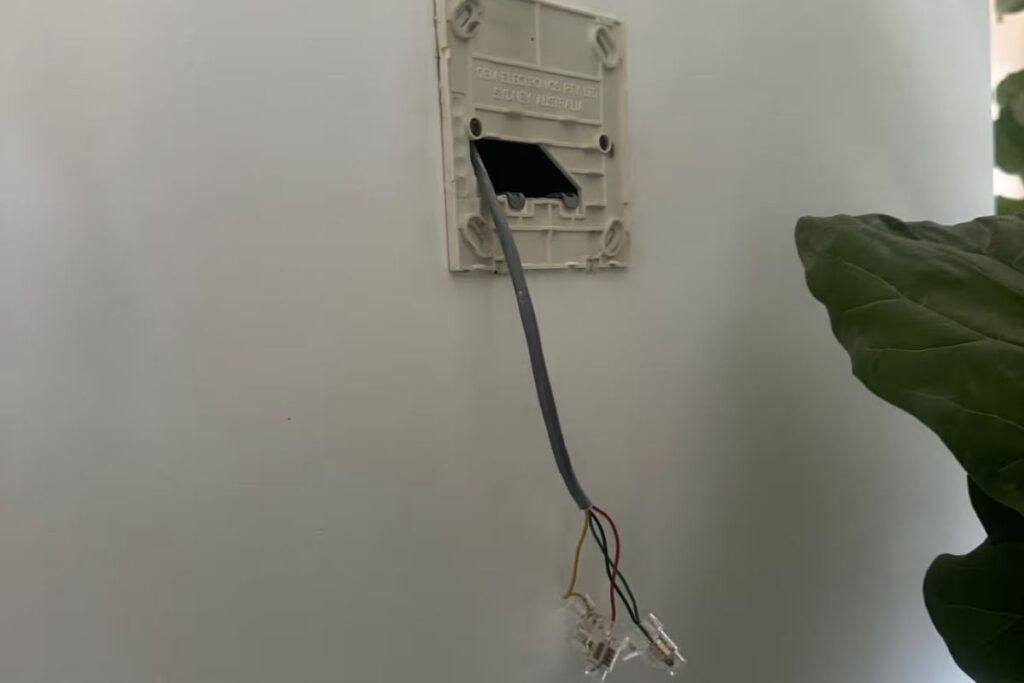

Should I replace the aircon controller myself?
We understand the logic. The display is wrong, so the controller must be broken, right? Because of this, many people jump straight to aircon controller replacement with a universal remote or a swapped wall unit.
Unfortunately, this usually makes things worse. The fault is almost always the sensor inside the unit, not the controller in your hand. Therefore, a new controller changes nothing — the wrong data still comes from the wrong sensor.
A mismatched controller also creates fresh problems. It may lose functions like fan speed, swing, or “i-feel” sensor mode. Worse, it may not speak the same protocol as your unit, so commands get scrambled.
Opening the indoor head is riskier still. There is mains voltage inside, and a slip can cause electric shock or damage the control board. On top of that, DIY work often voids your manufacturer warranty. In most cases, a proper diagnosis costs far less than the parts people buy by guessing.
How do you diagnose and fix sensor and controller faults?
Our process is methodical, and we start with the cheapest possibilities first.
- Check the simple stuff. First, we confirm the controller settings, batteries, and sensor mode.
- Test the reading. Then we compare the unit’s reported temperature against a calibrated thermometer.
- Measure the thermistor. Next, we check the sensor’s resistance against the manufacturer’s spec sheet.

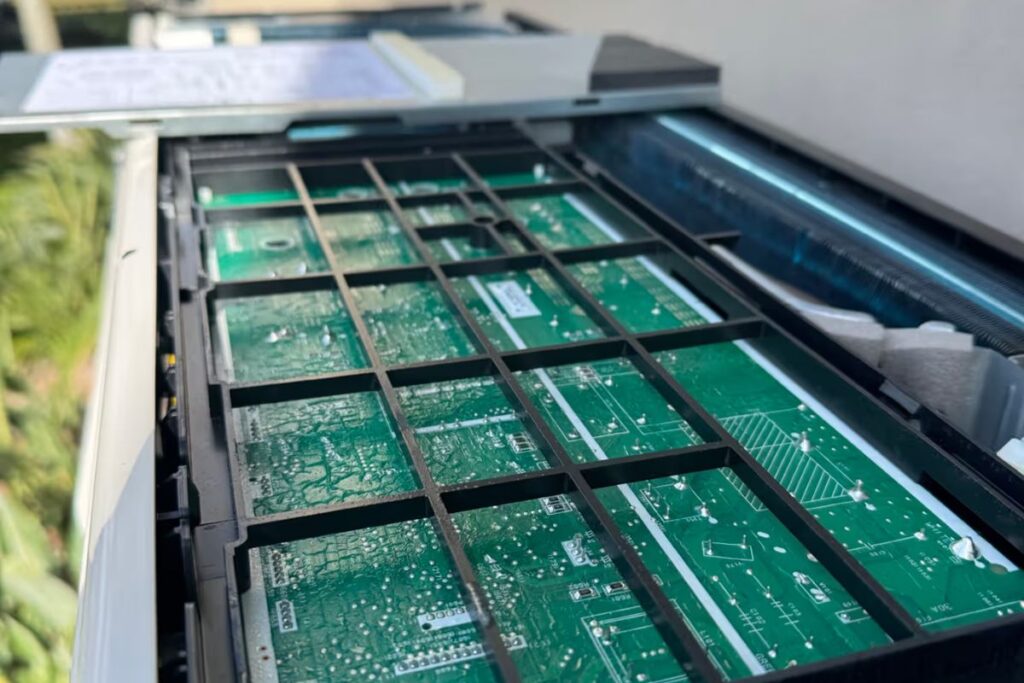

- Inspect the board. We look for corrosion, loose connectors, and heat damage on the PCB.
- Confirm airflow. After that, we check filters and coils, because poor airflow skews readings.
- Repair correctly. Finally, we replace the faulty thermistor, reseat connectors, or reconfigure the controller using genuine parts.
This approach works for residential air conditioning Gold Coast homes and larger commercial air conditioning Gold Coast sites alike. For commercial buildings, an inaccurate sensor across many zones can quietly waste thousands, so early diagnosis matters even more.
When should you call a Gold Coast technician?
If your rooms feel wrong, your bills have crept up, or the display and reality no longer match, book a check before the compressor suffers. As a Gold Coast air conditioning specialist established in 1986 – with 40 years in the region and named Fujitsu/GENERAL National Dealer of the Year in 2024 and 2025 – DEEPCHILL diagnoses sensor and controller faults (like wrong temperature reading) properly the first time.
Ready to get the numbers right again? Book an annual service or contact our team for a fast diagnosis. You can also read the Australian Government’s energy advice on setting your system for lower running costs.
