If your air conditioner keeps tripping the circuit breaker, you are not alone – it is one of the most common callouts we get for aircon repair on the Gold Coast. It is frustrating, especially on a cold winter morning when you just want the heat from your air conditioning back on. The good news: the breaker is doing its job, and the fault is usually a cheap fix, not a dead system. The bad news: something is drawing more power than it should, so it is worth diagnosing rather than resetting and hoping.
Should I just keep resetting the breaker?
No – and this is the most important thing to know. A breaker trips to protect you from an overload, short circuit, or earth fault – in other words, from an electrical fire or shock risk. Every time you flip it back on and the aircon draws too much current, you push heat and stress through the wiring. If water is involved, you are re-energising a circuit with water on a live wire.
Reset it once. If it trips again, leave it off and book a licensed technician. Repeated resets do not fix anything – they just wear out the breaker and hide the real cause.
Why does my AC keep tripping the breaker? 7 common causes
- A dirty or blocked filter. The most common cause and the easiest to fix. A clogged filter starves the system of airflow, so the motor works harder, runs hotter, and draws more current until the breaker trips. In winter, reverse-cycle units run long heating cycles, so a dirty filter shows up fast.
- Loose electrical connections (“hot joints”). Over years of heating and cooling, wiring terminals slowly work loose. A loose joint adds resistance, resistance makes heat, and that heat trips the breaker – or worse, damages the wiring. Not a DIY job.
- Low refrigerant or a refrigerant leak. When refrigerant is low, the compressor runs harder and longer to reach temperature, drawing extra current. A leak also weakens your heating and cooling over time, so it is worth catching early.
- A failing capacitor or contactor. The capacitor gives the motors the jolt they need to start. When it weakens, the system pulls a big surge trying to start – and trips the breaker. A common, inexpensive part to replace.
- A failing compressor. The compressor is the biggest power user. As it wears out it can struggle to start, drawing a large surge the moment it kicks in. If your aircon trips the instant it turns on, a tired compressor is a prime suspect – but it must be tested, not assumed.

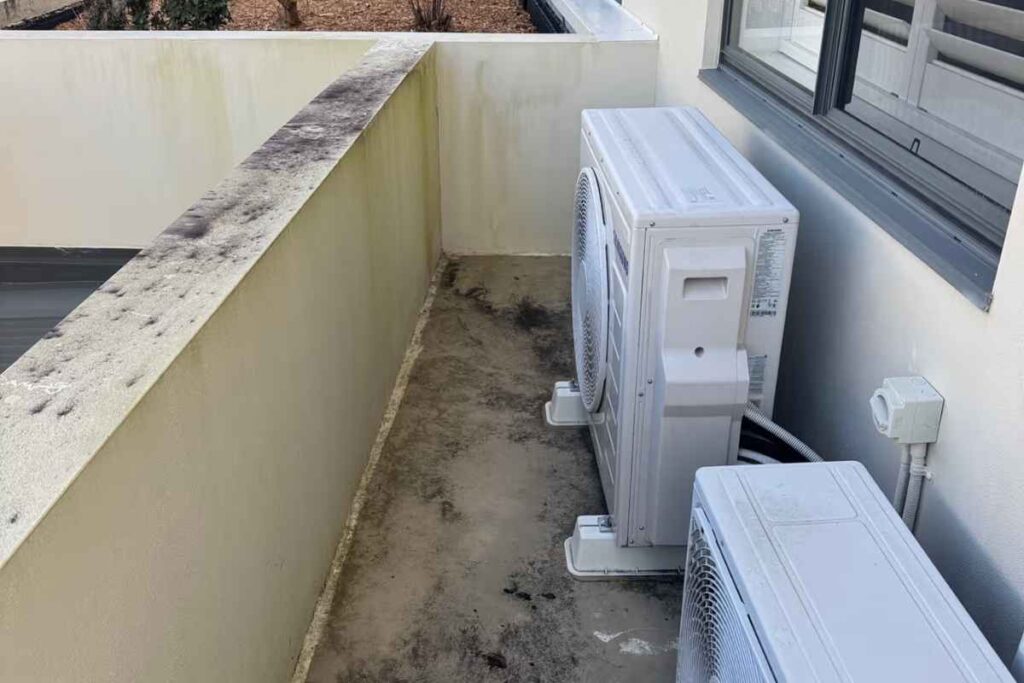

- Water in the outdoor isolator. The isolator switch sits outside next to the condenser, exposed to Gold Coast rain and humidity. If its housing cracks, water gets in, tracks onto a live wire, and trips the breaker – often looking like a random, weather-related fault.
- A worn-out breaker itself. A breaker is mechanical. After tripping many times it can start dropping a load it used to carry – so sometimes the aircon is fine and the breaker has simply given up. Only diagnosed after every other cause is ruled out.

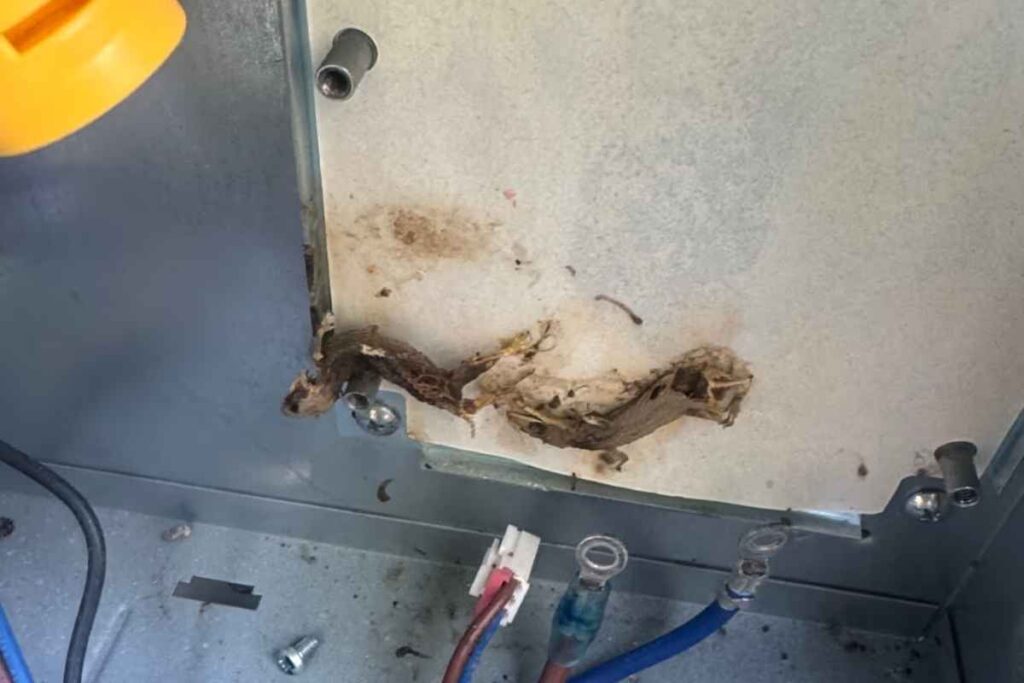

Pests and geckos deserve a mention too: in our climate they crawl into the outdoor unit looking for warmth, bridge two contacts, and cause an instant short.
Diagnose it by the pattern: when does it trip?
Before anyone opens anything, the timing of the trip is a huge clue – note it, as it shortens the diagnosis and helps you describe the fault over the phone.
- Trips the instant it turns on: usually a hard electrical fault – a short circuit, a failing capacitor, or a compressor drawing a massive start-up surge. Rarely fixes itself; needs a tech.
- Runs a while, then trips: something that changes with heat or load – a dirty filter or coil making the system overwork, low refrigerant, or a connection heating up. Often a cheaper fix.
- Only trips when it rains: a classic air conditioning Gold Coast fault. Water is getting into the outdoor electrics – usually a cracked isolator, a failed cable gland, or an unsealed junction box. A safety issue, and it needs a tech, not a reset.
Does a tripping breaker mean I need a new air conditioner?
An air conditioner tripping circuit breaker sounds alarming, but usually it is not a sign you need a new system. The only fault that truly ends a system’s life is compressor failure, and that is confirmed or ruled out with a simple insulation-resistance (“megger”) test. Plenty of systems that trip the breaker have a healthy compressor and a cheap underlying fault – a cracked isolator, a tired capacitor, or a worn breaker. Get a proper diagnosis before a replacement quote: age raises the odds of a problem, it does not diagnose one. If the compressor tests healthy, repairing is almost always the better value – often a few hundred dollars against thousands for a new system.
Is it the breaker or the safety switch?
People use these interchangeably, but they are different devices doing different jobs – and knowing which one trips tells a technician a lot before they open anything.
- A circuit breaker protects the wiring against overload and short circuit, by watching current.
- A safety switch (RCD) protects people, by detecting current leaking to earth and cutting power in
milliseconds.
If it is the safety switch tripping, that points strongly toward an earth-leakage fault – often the same water-in-the-isolator problem. Either way, note which one it is when you call.
What can I safely check myself?
A few things are genuinely safe for any homeowner:
- Clean or replace the filter. Turn the unit off, slide the filter out, wash or swap it, and let it dry fully before refitting.
- Look at the outdoor isolator. Check the weatherproof switch next to the outdoor unit for cracks, brittleness, or a lid that no longer seats. Just look – do not open it.
- Clear the outdoor unit. Remove leaves, cobwebs, and debris so the unit can breathe and is not working harder than it needs to.
- Note the pattern and the device. Instant or delayed? Only when it rains? Breaker or safety switch? That detail speeds up the fix.
- Reset once. One reset only. If it trips again, stop.
Everything else – the isolator, the wiring, the refrigerant, or opening the unit – needs a licensed technician, such as the team at DEEPCHILL, your local Air Conditioning Gold Coast specialists. Working on fixed wiring and refrigerant without a licence is unsafe and, in Australia, illegal.
When is it an electrical safety issue?
Treat it as a safety issue – and turn the unit off at the breaker – if you notice any of these:
- The breaker trips immediately every time you reset it.
- You can smell burning, or see scorch marks or melted plastic at the switchboard or isolator.
- The breaker, switch, or wall around it feels hot, or there is a buzzing or crackling sound.
Any of these points to a short circuit or earth fault. Leave the power off and call a professional straight away. (Under Australian wiring rules, AS/NZS 3000, your AC must also have a lockable, weatherproof isolator switch next to the unit. A cracked one is a common cause of wet-weather tripping).

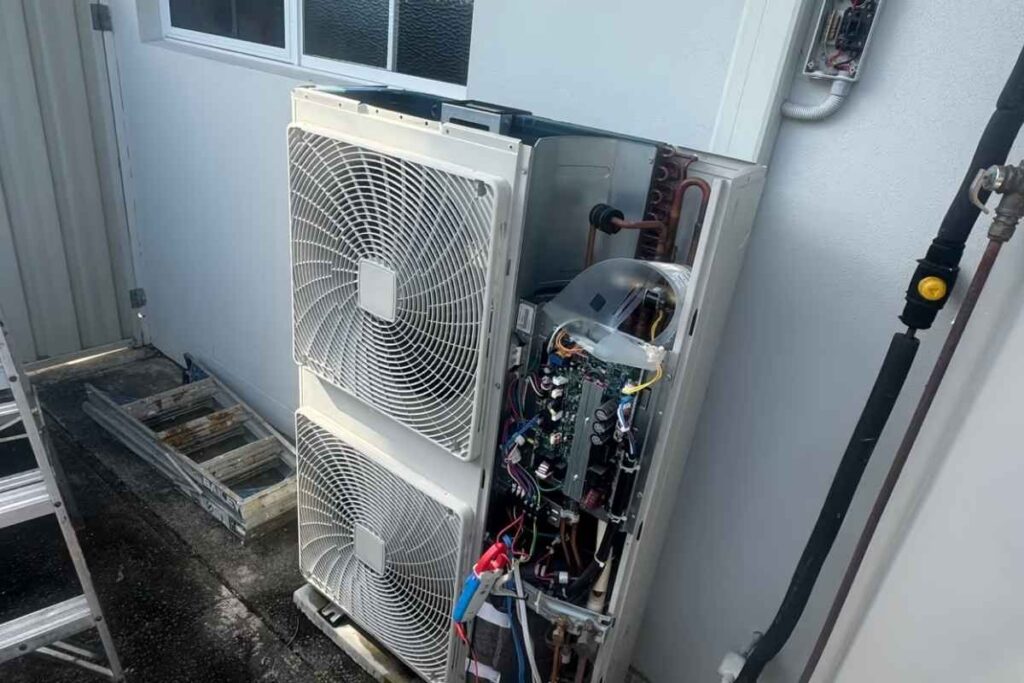

How do the pros diagnose it?
When our technicians look at an air conditioner tripping circuit breaker on the Gold Coast for breaker tripping, we do not guess and swap parts. We work through it methodically:
- Isolate the compressor so we can tell whether the fault is in the compressor itself or elsewhere.
- Megger-test the windings. An insulation-resistance test gives a clear pass or fail on the compressor – the single test that decides whether a system is worth keeping.

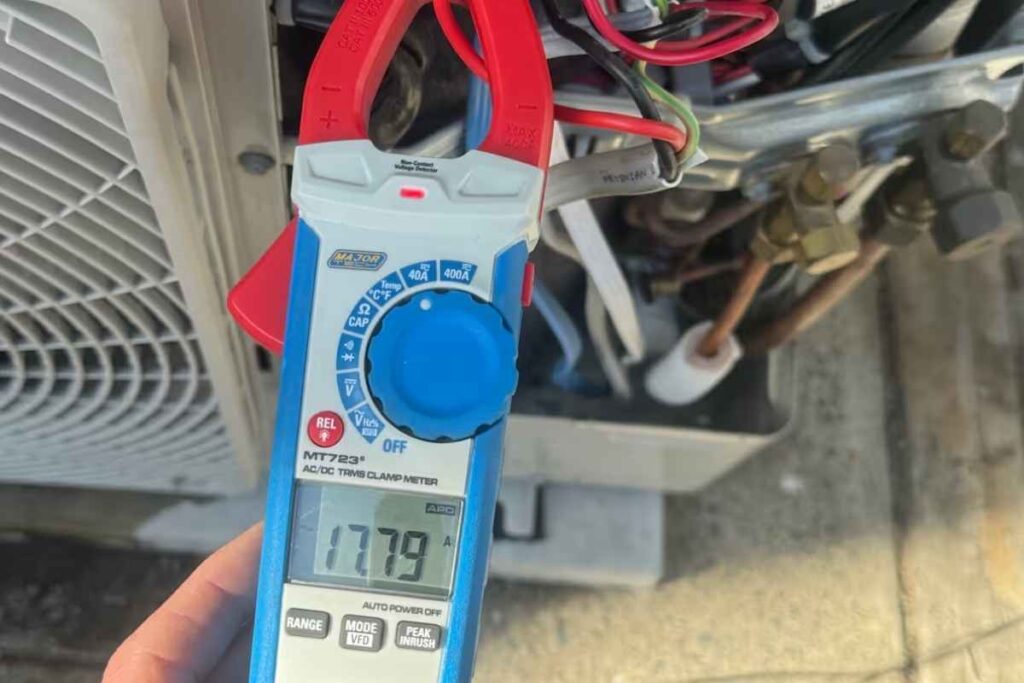

- Prove it under load by running the system and watching the actual current draw, to catch faults that only appear once things heat up and confirm the repair holds.
- Repair the real fault: tightening connections, resealing the isolator, replacing a capacitor or worn breaker, repairing a leak, or – only if the test demands it – replacing the compressor.
This means you pay to fix the real problem once, not to replace parts that were never broken. And on cost: a resealed isolator or new capacitor is minor, a worn breaker is moderate, a compressor replacement is major – most breaker-tripping faults land at the cheaper end once tested. DEEPCHILL – Air Conditioning Gold Coast diagnoses first and quotes before any work, so you are never guessing at the price.
Frequently asked questions
Why does my air conditioner only trip the breaker when it rains?
- Almost always water getting into the outdoor electrics – most often a cracked isolator, a failed cable gland, or an unsealed junction box. It is a safety issue and needs a licensed technician, not a reset.
Does a tripping breaker mean I need a new air conditioner?
- Usually not. The only fault that truly ends a system’s life is compressor failure, and that is confirmed or ruled out with a simple megger test. Most systems that trip the breaker have a healthy compressor and a cheap underlying fault.
How much does it cost to fix?
- It depends on the cause. A resealed isolator or a new capacitor is minor, a worn breaker is moderate, and a compressor replacement is major – most breaker-tripping faults land at the cheaper end once tested. DEEPCHILL, your local Air Conditioning Gold Coast team diagnoses the fault first and quotes before any work goes ahead.
Is it safe to keep resetting the breaker?
- No. A breaker trips for a reason. Repeated resets do not fix the cause – they wear out the breaker and, if water is involved, re-energise a live circuit. Reset once; if it trips again, book a technician.
What is the difference between a circuit breaker and a safety switch?
- A circuit breaker protects the wiring against overload and short circuit by watching current. A safety switch (RCD) protects people by detecting current leaking to earth. Knowing which one trips helps a technician diagnose the fault faster.
Get it sorted before winter bites
A tripping breaker rarely fixes itself, and in the middle of a cold Gold Coast winter you do not want to lose your heating. If your air conditioner keeps tripping the circuit breaker, the safe move is to stop resetting it and have it properly diagnosed.
DEEPCHILL – Air Conditioning Gold Coast offers licensed aircon repair on the Gold Coast with proper compressor testing and honest, upfront advice – we test before we talk about replacing anything, because that test is what turns an opinion into an answer. If your system keeps tripping the breaker, get in touch today and we will find the fault and get your heating and cooling running safely again.
Call DEEPCHILL for fast, licensed aircon repair across the Gold Coast.
